Why Ethernet Cables Stop at 100 Meters—and What Happens Beyond It

The 100-meter (328-foot) structural boundary for copper-based Ethernet connections is a central requirement when engineers design and installers deploy local area networks (LANs). The benchmark was established by the Telecommunications Industry Association and the Electronic Industries Alliance (TIA/EIA), based on the physical properties of twisted-pair copper wiring, signal attenuation, and high-frequency data transmission dynamics.

TIA/EIA-568 standards formally classify the 328-foot Ethernet limit as a “channel.” That channel includes a maximum permanent link of 90 meters (approximately 295 feet) and a combined 10 meters (approximately 33 feet) of patch cables.

The permanent link normally uses solid-core horizontal cabling routed through walls, ceilings, and conduit. Its four twisted pairs contain single, solid copper conductors, which provide lower attenuation over distance. Solid-core wire is rigid, however, and prone to breakage if bent repeatedly. Patch cables connect the permanent link to active hardware such as workstation network interface cards, network switches, or patch panels.

Patch cables use stranded-core copper conductors made from many thin copper filaments twisted together. This construction provides the flexibility needed around desks and server racks, but stranded copper exhibits roughly 20% to 50% higher attenuation, or signal loss, than solid copper. Exceeding the combined 100-meter allocation introduces timing delays, known as propagation delay, and signal degradation that can prevent receiving hardware from accurately decoding data packets.

Category specifications become increasingly important as bandwidth requirements rise from Fast Ethernet (100 Mbps) to multigigabit speeds. Cat5e is designed for frequencies up to 100 MHz and is rated for Gigabit Ethernet (1000BASE-T) across the full 328-foot limit. Category 6 operates at frequencies up to 250 MHz and supports 1 Gbps up to 328 feet.

When Cat6 carries 10 Gbps traffic through 10GBASE-T, its high frequencies make the cable highly susceptible to alien crosstalk, the electromagnetic interference leaked from adjacent cables in a bundle. Cat6 is therefore limited to 55 meters (180 feet) for 10 Gbps traffic. Category 6a is engineered for frequencies up to 500 MHz and uses internal physical shielding or tighter twists to mitigate alien crosstalk, allowing it to reliably support 10 Gbps across the full 328-foot channel.

A run beyond its certified limit does not instantly lose all network performance. Packet loss, frame check sequence (FCS) errors, and late collisions can occur instead. High-speed network interfaces may automatically negotiate down to lower speeds to maintain a stable connection over an out-of-spec physical link, dropping from 10 Gbps to 1 Gbps or from 1 Gbps to 100 Mbps.

Power over Ethernet (PoE) adds electrical concerns to the distance limitation. PoE supplies direct current (DC) electricity alongside data to power IP cameras, wireless access points, and VoIP phones. The IEEE 802.3af, 802.3at (PoE+), and 802.3bt (PoE++) standards are similarly rated for the 100-meter limit.

As DC current travels through thin copper wires over long distances, electrical resistance causes part of the energy to be lost as heat. The resulting voltage drop at the receiving end can leave the voltage below the minimum threshold required by the powered device (PD), causing it to fail to power on or reboot under load. Installers must therefore consider wire gauge (AWG): thicker 23 AWG conductors, commonly found in Cat6a, offer less resistance and lower voltage drop than thinner 24 AWG or 26 AWG wires often used in Cat5e or cheap patch cables.

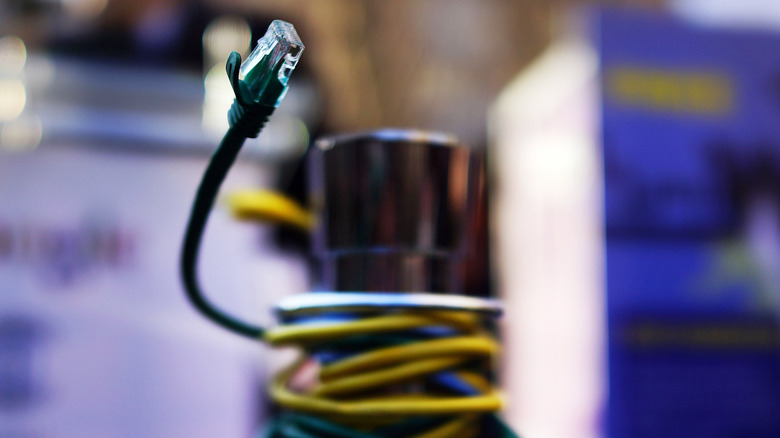

For a connection wider than 328 feet, network administrators can use active signal regeneration or alternative media. A midpoint active network switch is the most straightforward copper extension method. The switch acts as a repeater by receiving deteriorating signals, decoding them, and transmitting a fresh, fully amplified signal down another copper segment, effectively doubling the range.

Fiber optic cabling is the industry standard when a midpoint lacks power infrastructure or when distances span thousands of feet. Fiber optics transmit data using light pulses through glass silica cores, eliminating electromagnetic interference and signal degradation over long distances. Media converters or network switches equipped with Small Form-factor Pluggable (SFP or SFP+) transceiver ports can integrate fiber into an existing copper infrastructure.

Multi-mode fiber (OM3 or OM4) uses LED or vertical-cavity surface-emitting laser (VCSEL) light sources. It is commonly used inside buildings or data centers and supports 10 Gbps speeds up to 300 to 400 meters (roughly 984 to 1,312 feet).

Single-mode fiber (OS2) uses precise laser transmitters and a much narrower glass core. It is used for long-distance, campus-wide, or metropolitan-area networks and can transmit gigabit and multi-gigabit signals across distances of 10 kilometers (over 6 miles) to 40 kilometers without significant signal degradation.
